4. Introduction

The majority of the pgModeler features can be customized in order to deliver to the user a better usability and productivity. The configuration dialog is divided in six sections being them: General, Relationships, Appearance, Connections, Snippets and Plug-­ins. In order to open the settings dialog, the user can go through the menu Edit > Settings or just click the icon located on the left tool bar at main window.

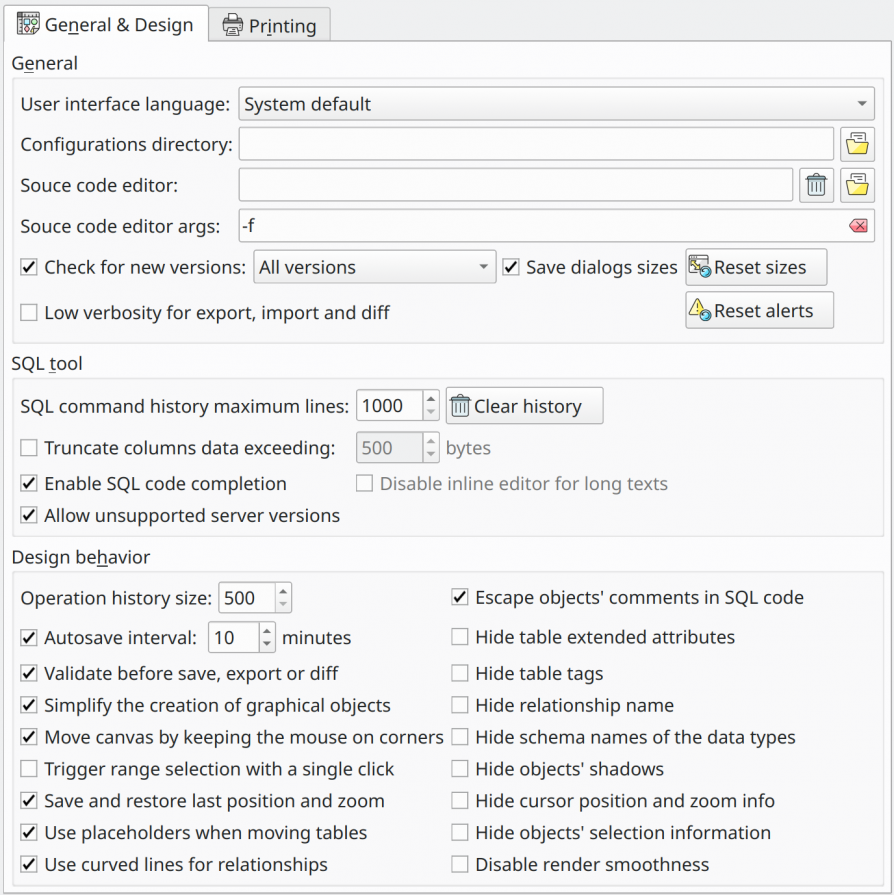

Once opened the configurations you are free to change all available options but be sure to click Apply button (see image below) in order to save the configuration files. To abort any modification just click Cancel. Finally, the user can anytime revert back the adjustments to their default values by clicking Defaults at the bottom of the dialog, this is possible because pgModeler stores in a folder called conf/defaults on the installation directory all its original settings. Note that the default settings restoration is only made for the current section so if you intend to restore all settings on all sections you need to go through each one and click Defaults.

The application stores the settings per user which means that the configuration files are saved into the user's local store which varies according to the running operational system: C:\Users\[user]\AppData\Local\pgmodeler (Windows), /home/[user]/.config/pgmodeler (Linux), /Users/[user]/Library/Preferences/io.pgmodeler (macOS).

The files saved on the local settings are: pgmodeler.conf (general settings), object-style.conf (appearance settings), relationships.conf (relationships settings), connections.conf (servers connections settings), snippets.conf(snippets settings) and some others that aren't directly accessible or customizable from the configuration form.
