1.2. Design view

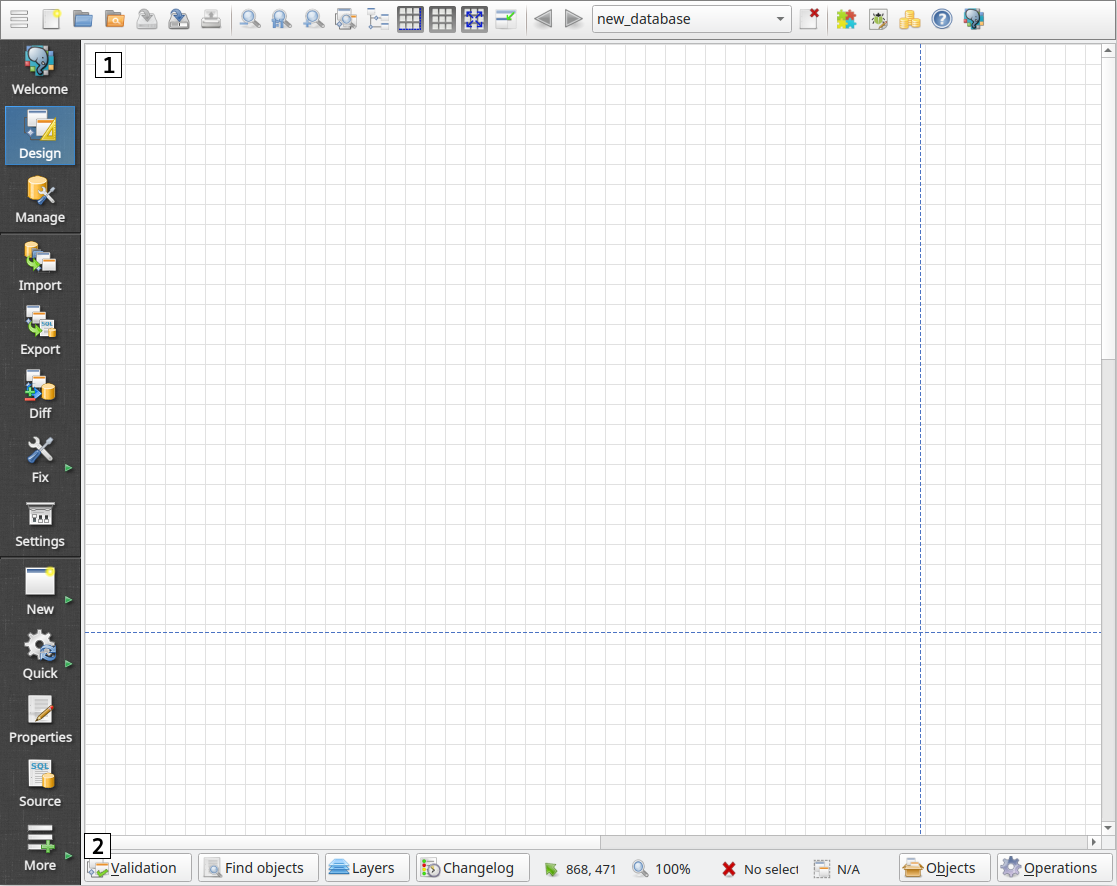

The design view contains only two subsections (see image) and they are described as following:

  1. Canvas area: this area is used to draw model objects like tables, views, text boxes, and relationships. The dashed blue lines are the page delimiters representing the paper limits (according to the paper size configured) and they serve as a guide to avoid that an object is cut when printing the model.

  2. Toggle buttons: these buttons activate some advanced widgets. These tools are the model validation, object finder, layers management, model changelog, executed operations, and model objects. A detailed description of each one can be seen in the next sections. Additionally, between the toggle buttons, we have a set of information about the current state of the canvas which is, from left to right, the mouse pointer position (in canvas' coordinate), the current zoom factor, the current selection and the overall width/height of the current selection.
